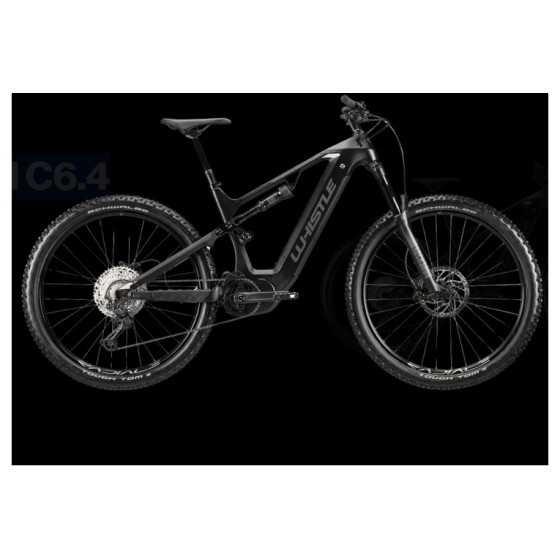

O-Rush C6.4 90Nm 603Wh tg.M

Frame
Full Carbon 29, Toray T700, integrated battery, internal routing, Rear travel 150 mm, 12x148 mm E-Thru
Fork
Rock Shox Recon Silver RL, 150 mm, Maxle Lite 15x110 mm, Solo Air, 1.5 Tapered, Lockout
Rear Shock
Rock Shox Deluxe Select R 230x65, Debon Air
Rear Derailleur
Shimano XT RD-M8100 SGS, Shadow Plus
Brakes
Shimano BR-MT420, Four piston, Rotor SM-RT30 203 mm / 203 mm
Mechanical Specifications
Component
Value
Frame
Full Carbon 29, Toray T700, integrated battery, internal routing, Rear travel 150 mm, 12x148 mm E-Thru
Fork
Rock Shox Recon Silver RL, 150 mm, Maxle Lite 15x110 mm, Solo Air, 1.5 Tapered, Lockout
Rear Shock
Rock Shox Deluxe Select R 230x65, Debon Air
Headset
FSA No.57E tapered 1"1/2
Crankset
FSA 34T
Rear Derailleur
Shimano XT RD-M8100 SGS, Shadow Plus
Shifters Levers
Shimano Deore SL-M6100 Rapidfire-Plus, 12s, I-spec
Brakes
Shimano BR-MT420, Four piston, Rotor SM-RT30 203 mm / 203 mm
Cassette
Shimano CS-M6100 12s 10/51
Pedals
Alu MTB Full+
Front hub
Shimano TC500B, 15x110, CL, 32h
Rear hub
Shimano TC500B, 12x148, CL, MicroSpline, 32h // Formula, 12x148, CL, MicroSpline, 32h
Rims
RADIALE X30, eDesign | Asymmetric, Tubeless Ready, 622x30c
Stem
Alu, Barbore 31.8 mm
Handlebar
Alu, 780 mm, Barbore 31.8, Rise 15 mm
Seatpost
Dropper Alpha 1, 31,6 mm, remote
Saddle
Whistle Performance
Tyres
Schwalbe Tough Tom, 29”x2,25” / Vittoria Barzo
Size
40 44 48 52
Wheel diameter [inch]
29"
Electric specifications

Battery
Phylion BN21L 603Wh, weight 3.6 kg
Display
OLI High Vision
ENGINE
OLI Edge, 36 V, 250 W

Max Power & Torque
750 W, 90 Nm

90 Nm


Charger
2 A

Up to 6.9 hours


Max Assistance
Mode 1: 120% Mode 2: 180% Mode 3: 230% dynamic Mode 4: 400% dynamic


Max Velocity
25 km/h
